Picture Profile on Nikon Rangefinder S3 2000 / Millennium / Y2K Chrome Limited Edition camera model - MIR image Library




Nikon Rangefinder S3 Chrome 2000 / Millennium Limited Edition camera model with special edition Nikkor-S 50mm f/1.4 standard lens

Nikon rangefinder S3 2000 ("Y2K") model

Amidst taking off in the digital imaging sector in SLR and P&S market as well as an upgrade of LEICA M6 TTL which has brought TTL flash to their evergreen line of M6 series, not many people would had the slightest imagination to relate the Japanese camera which had found its recognition in the photographic equipment market via their S-mount rangefinder series cameras back in the '50 would reintroduce a remake of the old time classic. Yes. indeed it had stunned many observers and sprung surprises to Nikon enthusiasts worldwide when it was released in February, 2000 with the original intention of 2000 limited edition units for Year 2000. The "idea" was so well received that before it was officially shipped that back order was already piling up domestically as well as international request that eventually it had exceeded the original target production unit of 2000 units.

I guess the last two generation of Nikon users probably had no idea what and how the Nikon rangefinder era was. You may just browse around in a simplest way to get an idea in the sequential events via the pages of the pictorial history. Basically, the Nikon S3 (1958~1967) was a simplified version based on the professional grade Nikon SP, where some selected features in the Nikon SP had been removed. The bright line frames in the S3 was not switchable but there were three fixed frame lines for popular focal length such as 35mm, 50mm and 105mm (the SP offers extended range of 28~135mm*). The S3 can / will accept / share the many accessories designed for the SP such as S36, S250 Motor Drives etc. Two known versions of the Nikon S3 exist, one with cloth shutter and another with a Titanium shutter curtain. Besides, there was a special edition which was being produced to commemorate the XVIII Tokyo Summer Olympic Games in 1964 - a few years after its discontinuation. Approx. 14,000 of the Nikon S3 were being produced throughout its entire product cycle. In the market place, the S3 was Nikon direct answer to the highly successful continuation of the Leica M3 single stroke models as well as Contax II/III.

* Technically, you can say the Nikon S3 does not incorporate a viewfinder for wideangle lenses, but the 3.5cm frame comes outside the full-size standard viewfinder's 10.5 / 5cm frame. As mentioned earlier, users cannot see the 3.5cm frame without rolling their eyes about. And, unlike the SP, with the S3 the three (3) frames are always indicated. There is no automatic parallax compensation.

RFNikonS3sml.jpg RF Nikon S3 Motor link

Some images of the original Nikon S3 contributed by Mr. Shelton from Shelton-Classic-Co
A few images of a
RF-Nikon S3 with Motor-drive Drilling courtesy of Mr. Emanuele

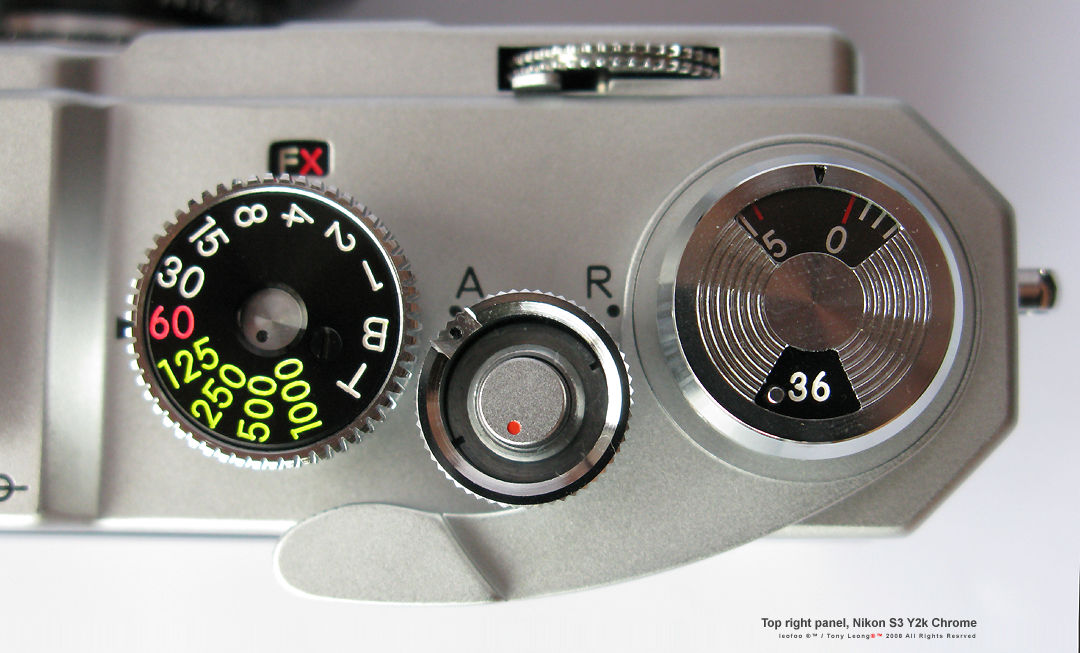

Top plate of Nikon Rangefinder S3 Chrome 2000 / Millennium Limited Edition camera

Top plate, Nikon Rangefinder S3 2000 / Millennium Limited Edition BLACK camera

Nikon had also took the opportunity to refine some minor areas in the S3 remake model's external appearance but none are significant to conclude it is a new model. There are a few which deserve a mention. The film reminder has been corrected as 24 or 36 instead of 20/36 as used on the original S3; the film advance lever has been improved. The serial number which was intended to separate the new and original has been re-categorized with a starting S/N S3 20xxxx to as high as 21xxxx for chrome; S3 30xxxx for black paint version. There are some change in the choice of materials at non critical areas such as neck strap eyelet are using stainless steel now (from brass) and the finishing metallic coating is just chromed instead of the old nickel chrome. The old "Nippon Kogaku TOKYO" logo was retained, if not it would have been degrading its original intentive purpose.

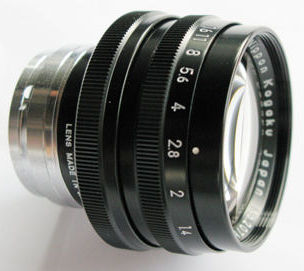

Special edition Nikkor-S 50mm f/1.4 standard lens for Nikon Rangefinder S3 Chrome 2000 / Millennium Limited Edition Rear lens mount of Nikkor-S 50mm f/1.4 Special Millennium Edition Top view of lens reflective coating on  Nikkor-S 50mm f/1.4 standard lens for Nikon Rangefinder S3 Chrome 2000 / Millennium Limited Edition

Along with the release. Nikon had also tailored produced a matching Nikkor-S 1:1.4 f=50mm standard lens for the camera. Naturally, older original RF-Nikkor lenses can still be used on this new S3. As one can recall, the last RF 50/1.4 was the Olympic black in 1964 where it makes a great companion along with the original Nikon S3 black paint. The new Y2K RF-50mm f/1.4 Nikkor-S here has some similarity but internally, it has been redesigned with a new composition bearing 7 elements in 5 groups optical construction and weighs overall just only 175g. The lens has a starting S/N that begin with 20xxxxx, since the last of the Black 50/1.4 Olympic used 14xxxxx, it shouldn't be easily mixed with the reissued Nikkor-S 1.4/50mm.


Front view of Nikon Rangefinder S3 Chrome 2000 / Millennium Limited Edition camera
Photo Gallery on Nikon S3 Chrome Millennium edition, 2000 Photo Gallery on Nikon S3 Chrome Millennium edition, 2000 viewfinder brightlines frames Photo Gallery on Nikon S3 Chrome Millennium edition, 2000  lens mount coupling

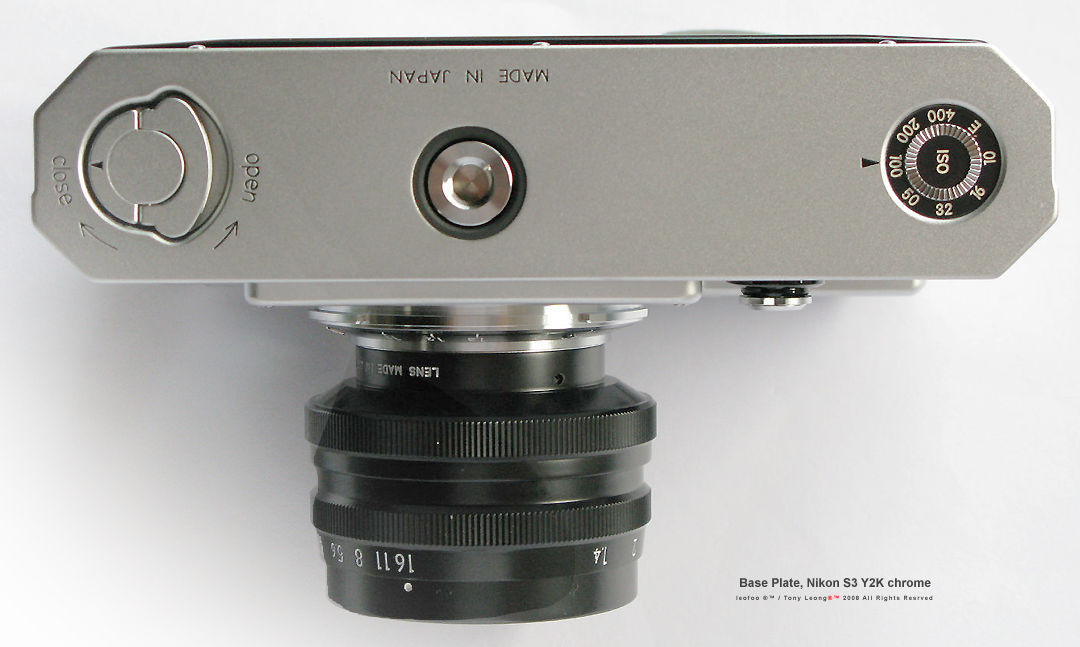

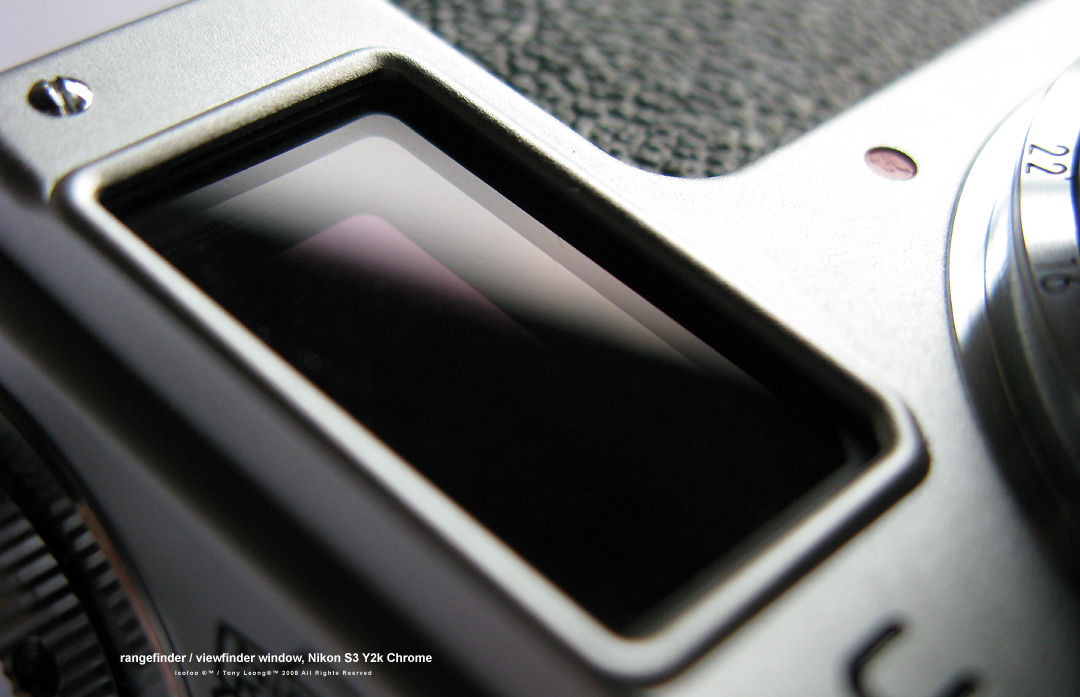

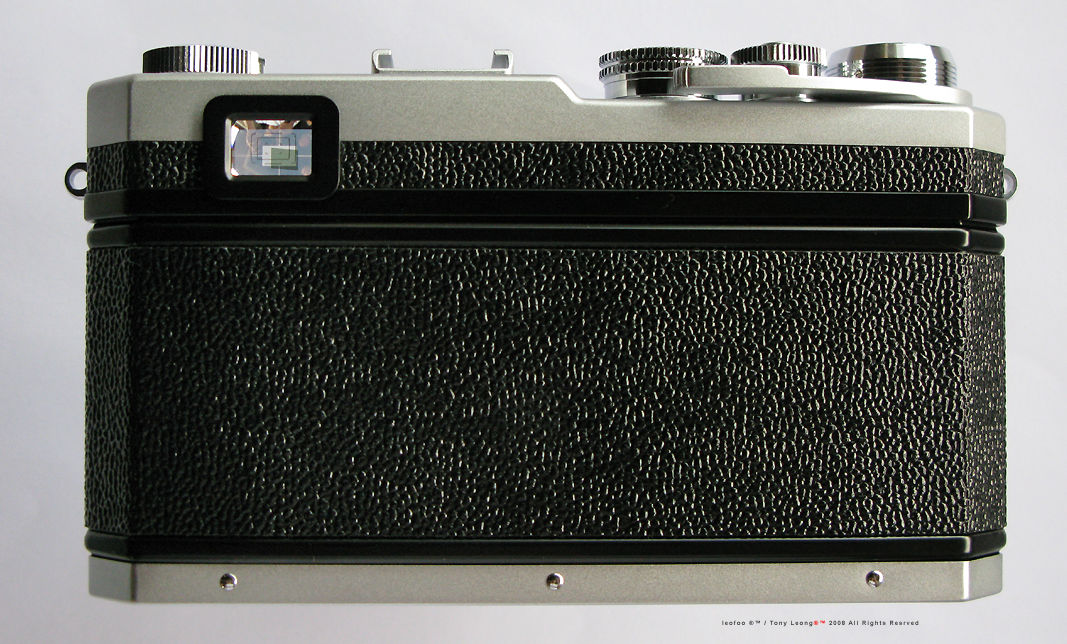

Photo Gallery on Nikon S3 Chrome Millennium edition, 2000 Photo Gallery on Nikon S3 Chrome Millennium edition, 2000 shutter speed dial and release button Photo Gallery on Nikon S3 Chrome Millennium edition, 2000 rangefinder view window Photo Gallery on Nikon S3 Chrome Millennium edition, 2000 base section view Photo Gallery on Nikon S3 Chrome Millennium edition, 2000 rear film back view

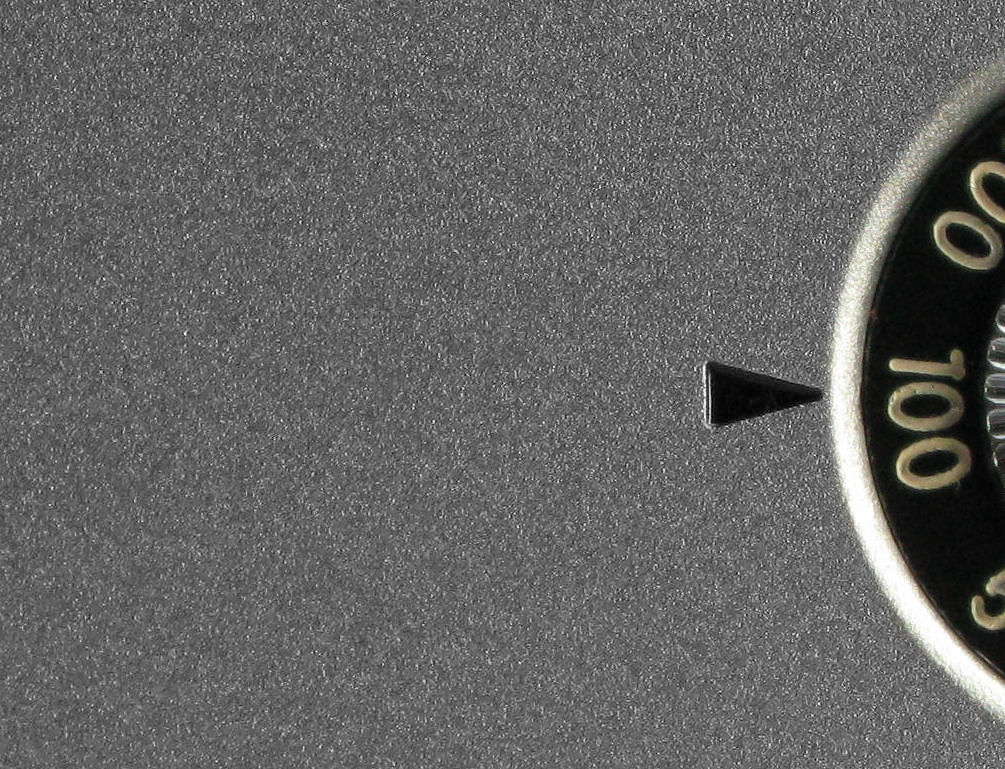

Material/ metallic surface texture
<<< -- CLICK to view the material/surface texture of the Chrome S3 Y2K camera model (287k Jpeg).

Nikon finally managed to translate the Japanese original content on
HOW the Nikon S3 Millenium model was reproduced in production flow. It deserves a good read. The updated content in Nikon US site also has outlined the differences from the original S3:

Focusing scales: Unified to meters (m) scales from the original; distance range ring uses dual scales units, in m and ft
Automated frame counter dial: numeric has changed to a new “ 24” from “ 20” used in original S3

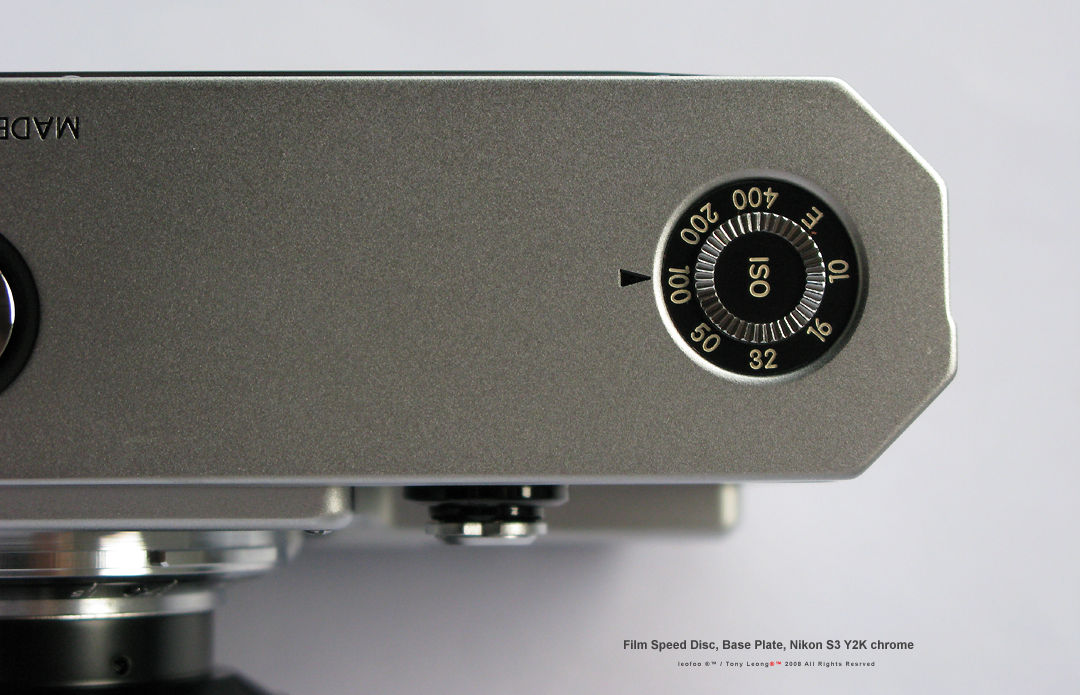

Film Sensitivity Dial: changed to ISO from older ASA
Strap lugs: Materials were changed to stainless steel from brass, and to chrome finish from nickel-chrome finish.
Film rewind crank: Slightly changed in its external design
Film rewind knob: Slightly changed in its external design

Original corrugated box for Nikon S3 Y2k Limited Edition
<<< -- CLICK to view the original packing/boxes supplied along with the Chrome S3 Y2K camera model (200k Jpeg).

Camera back pressure plate: Slightly changed external design
Accessory shoe: Slightly changed in external design
Shutter dial sync. indicator color: Slightly changed
Body number: “S3” inscribed before the serial number for identification of the re-issued models

Lens: Nikkor-S 1:1.4 f=50mm Black. “Nikon” and “MADE IN JAPAN” inscribed, and multi-coating on the lens surfaces
Lens Cap: Changed to aluminum from plastic (with “Nikon” word inscribed on the back section)
Lens hood: Pitch 0.75 mm, “Nikon” inscribed
- Nikon Material Source -

previous | Next | 2/4
The alternate BLACK PAINT version of Nikon S3 Millennium Edition, 2000

Page One | Page Two | Page Three | Page Four (Nomenclature)
