Nikkor Zoom Lenses

A comprehensive line of nine zoom lenses, spanning gap between 28mm wideangle and 1200mm super-telephoto, is another reason why the name "Nikkor" has become synonomous with quality and versatility in 35mm optics. It used to be true that a zoom lens couldn't match the picture quality of a comparable single-focal-length lens in the same range, but Nikon changed all that. With the introduction of their 80~200mm f/4.5 zoom in 1970, Nikon created a lens whose performance was so outstanding that even the photographic reviewers couldn't believe it. At almost every focal length, including 85, 105,135,180, and 200mm, the 80~200mm zoom produced resolution figures that virtually equalled its single-focal-length counterparts. Since then, Nikon has continued to develop zoom lenses which have challenged the imagination of the most sophisticated photographers around the world. Take the 28~45mm f/4.5, for example. It was the first high-performance zoom lens with a minimum focal length of 28mm ever produced by a camera manufacturer. And the 360~1200mm f/11 ED is still unsurpassed for its super-telephoto zoom range. Part of the appeal of a zoom lens is convenience. In one lens, it gives the photographer a variety of focal lengths without having to carry extra lenses. It also allows the photographer to change focal lengths quickly, and therefore change his coverage, without actually having to change lenses or positions. But probably the biggest attraction is its ability to create "zoom blurs." By zooming the lens during a slow shutter speed, the cameraman can impart a feeling of action to stationary subjects, and what this action does to a moving object can often be surprising and eye-catching.

Zoom Nikkor 28-45mm f4.5

The First Zoom Lens with a Minimum Focal Length of 28mm

Sales Points

• Zoom coverage ranging from 74° wideangle to 50° normal.
• Compact and lightweight.
• Focuses down to 2 feet (0.6m).
• Separate zoom and focusing rings for independent control.
• Takes 72mm filters.
• Supplied with a 72mm screw-in front lens cap.
• Photographic uses include photojournalism, sports, travel, backpacking, environmental portraiture, annual report shooting, scenics, interiors, candids of people, weddings, electronic flash photography, group shots, full-length portraits in the studio or on location, and zoom blurs.

Specifications

Focal length/Aperture:
Lens construction:
Picture angle:
Diaphragm:
Aperture scale:
Exposure measurement:
Distance scale:
Weight:
Dimensions:
Attachment size:
Front lens cap:
Lens hood:
Lens case:

28 - 45mm fl4.5
11 elements in 7 groups
74° - 50°
Automatic
f/4.5~ f/22 on both standard and aperture-direct-readout scale
Via full aperture method; meter coupling ridge
provided for Al cameras and meter coupling shoe for non-AI cameras
Graduated in meters and feet from 0.6m (2 ft) to infinity (oo)
440g
75mm dia. x 91mm long (overall); 79mm extension from flange
72mm (P = 0.75)
Screw-in
Sl m-on (H K-1)
CL-32S; No. 62

Zoom-Nikkor 35-70mm f/3.5

Ideal for Portraits and Weddings

Sales Points

• Zoom coverage ranging from 62° wideangle to 34°20' moderate telephoto.
• Separate zoom and focusing rings for independent control.
• Takes 72mm filters.
• Supplied with a 72mm screwin front lens cap and hard lens case.
• Photographic uses include photojournalism, sports, travel, backpacking, environmental portraiture, annual report work, scenics, candids of people, weddings, electronic flash shooting, group shots, full-length as well as head-andshoulders portraits in the studio or on location, and zoom blurs.

Specifications:
Focal length/Aperture:
Lens construction:
Picture angle:
Diaphragm:
Aperture scale:
Exposure measurement:
Distance scale:
Weight:
Dimensions:
Attachment size:
Front lens cap:
Lens hood:
Lens case:

35 -70mm f/3.5
l0 elements in 9 groups
62° - 34°20'
Automatic
f/3.5 ~ f/22 on both standard and aperture-direct-
readout scale
Via full aperture method; meter coupling ridge
provided for Al cameras and meter coupling shoe for
non-AI cameras
Graduated in meters and feet from 1m (3.5 ft) to
infinity (oo)
550g
75mm dia. x 101mm long (overall); 92.5mm extension
from flange
72mm (P = 0.75)
Screw-in
Slip-on (HK-5)
CL-32S; No. 62

Zoom-Nikkor 43-86mm U3.5

One of the Most Popular Zoom Lenses in the History of 35mm Photography

Sales Points

• Zoom coverage ranging from 53° normal to 28°30'telephoto.
• Compact and lightweight.
• Combined zoom and focusing rings for fast handling.
• Takes 52mm filters–the standard for most Nikkor lenses from 20 to 200mm.
• Color-coded depth-of-field scale engraved on the lens barrel for accurate determination at any focal length setting.
• Photographic uses include photojournalism, sports, travel, backpacking, environmental portraiture, annual report work, scenics, candids of people,weddings, electronic flash shooting, group shots, full-length as well as head-and shoulders portraits in the studio or on location, and zoom blurs.

Specifications

Focal length/Aperture:
Lens construction:
Picture angle:
Diaphragm:
Aperture scale:
Exposure measurement:
Distance scale:
Weight:
Dimensions:
Attachment size:
Front lens cap:
Lens hood:
Lens case:

43 - 86mm f/3.5
11 elements in 8 groups
53° ~ 28°30'
Automatic
f/3.5 ~ f/22 on both standard and aperture-direct-
readout scale
Via full aperture method; meter coupling ridge
provided for Al cameras and meter coupling shoe for non-AI cameras
Graduated in meters and feet from 1.2m (4 ft) to infinity (oo)
450g
66.5mm dia. x 81.5mm long (overall); 73.5mm
extension from flange
52mm (P= 0.75)
Snap-on
Screw-in (HN-3)
CL-32S; No. 62; CP-2

Zoom-Nikkor 80-200mm f/4.5

Five Telephoto Lenses in One - 85, 105, 135, 180, and 200 mm

Sales Points

• Telephoto zoom coverage ranging from 30° 10' to 12° 20'.
• Compact and lightweight for its combination of focal lengths.
• Combined zoom and focusing rings for fast handling.
• Focuses down to 6 feet (1.8m).
• Takes 52mm filters - the standard for most Nikkor lenses from 20 to 200mm.
• Supplied with a hard lens case.
• Photographic uses include photojournalism, sports, wildlife, electronic flash photography, head-and-shoulders portraits in the studio or on location, travel, distant landscapes, candids of people, and zoom blurs.

Specifications

Focal length/Aperture:
Lens construction:
Picture angle:
Diaphragm:
Aperture scale:
Exposure measurement:
Distance scale:
Weight:
Dimensions:
Attachment size:
Front lens cap:
Lens hood:
Lens case:

80~200mm f/4.5
12 elements in 9 groups
30°10'~ 12°20'
Automatic
f/4 5 ~ f/32 on both standard and aperture-direct-readout scale
Via full aperture method; meter coupling ridge
provided for Al cameras and meter coupling shoe for non-AI cameras
Graduated in meters and feet from 1.8m (6 ft) to infinity (OO)
750g
73mm dia. x 162mm long (overall); 153.5mm extension from flange
52mm (P= 0.75)
Snap-on
Screw-in (HN-7)
CL-35A (provided), No.63

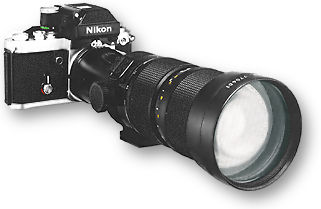

Zoom-Nikkor 50-300mm f/4.5

The Only 6X Zoom Lens in 35mm Photography

Sales Points

• Extreme zoom coverage ranging from 46° normal to 8°10' long telephoto.
• Separate zoom and focusing rings for independent control.
• Focuses down to 8-1/2 feet (2.5m ).
• Built-in rotatable tripod mounting collar.
• Supplied with a 95mm screw-in front lens cap and carrying strap.
• Photographic uses include photojournalism, sports, wildlife, landscapes, and zoom blurs.

Specif ications:
Focal length/Aperture:
Lens construction.
Picture angle:
Diaphragm:
Aperture scale:
Exposure measurement:
Distance scale:
Weight:
Dimensions:
Attachment size:
Front lens cap:
Lens hood:
Lens case:

50~ 300mm f/4.5
20 elements in 13 groups
46 ~8 10
Automatic
f/4.5 ~ f/22 on both standard and aperture-direct-readout scale
Via full aperture method; meter coupling ridge provided for Ai cameras and meter coupling shoe for non-Ai cameras
Graduated in meters and feet from 2.5m (8.5 ft) to infinity (oo)
2.3kg
98mm dia. x 292mm long (overall); 284mm extension from flange
95mm (P= 1)
Screw-in
Screw-in (MN-1 1 )
CE-2

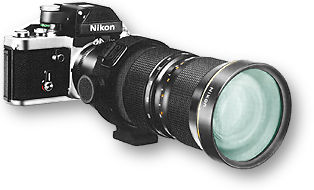

Zoom-Nikkor 50-300mm f/4.5 ED

ED Version of One of the Most Versatile Lenses in 35mm Photography

Sales Points

• Extreme zoom coverage ranging from 46° normal to 8°10' long telephoto.
• Extra-Low Dispersion (ED) glass for outstanding picture quality.
• Separate zoom and focusing rings for independent control.
• 45mm shorter than the standard version.
• Supplied with a 95mm screw-in front lens cap and carrying strap.
• Photographic uses include photojournalism, sports, wildlife, landscapes, and zoom blurs.

Specifications

Focal length/Aperture:
Lens construction:
Picture angle:
Diaphragm:
Aperture scale:
Exposure measurement:
Distance scale:
Weight:
Dimensions:
Attachment size:
Front lens cap:
Lens hood:
Lens case:

50 ~ 300mm f/4.5
15 elements in 11 groups
46° ~ 8 10'
Automatic
f/4.5 ~ f/32 on both standard and aperture-direct-readout scale
Via full aperture method; meter coupling ridge
provided for Al cameras and meter coupling shoe for non-AI cameras
Graduated in meters and feet from 2.5m (8.5 ft) to infinity (oo)
2.2kg
98mm dia. x 247mm long (overall); 239mm extension from flange
95mm (P= 1)
Screw-in
Slip-on (HK-5)
CE-2

* Rotatable Tripod Collar Provided

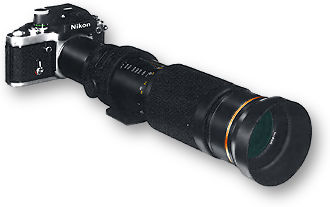

Zoom-Nikkor 200-600mm f9.5

Perfect for Sports or News Coverage

Sales Points

• Wide zoom coverage ranging from 12° 20' telephoto to 4° 10' super-telephoto.
• Combined zoom and focusing rings with locking screw.
• Focuses down to a close 7-1/2 feet (2.3m) with the accessory close-up lens supplied with the lens.
• Built-in rotatable tripod mounting collar and screw-in lens hood.
• Supplied with accessory closeup lens, hood, and screw-in front lens cap.
• Photographic uses include photojournalism, sports, wildlife, and zoom blurs.

Specifications

Focal length/Aperture: 200~ 600mm f/9.5
Lens construction: 19 elements in 12 groups
Picture angle: 12° 20'~ 4°10'
Diaphragm: Automatic
Aperture scale: f/9.5 ~ f/32 on both standard and aperture-direct-readout scale
Exposure measurement: Via stop-down method
Distance scale:Graduated in meters and feet from 4m (13 ft) to infinity (oo)
Weight: 2.4kg
Dimensions: 89mm dia. x 382mm long (overall); 374mm extension from flange
Attachment size: 82mm (P= 0.75)
Filters: Series IX
Front lens cap: Slip-on
Lens hood: Screw-in (HN-10)
Lens case: CE-3
Nota: Rotatable tripod collar provided.

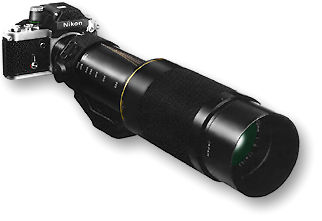

Zoom- N ikkor 180- 600 mm f8 ED

Ideal for Shooting from a Press Box

Sales Points

• Wide zoom coverage ranging from 13° 40' telephoto to 4°10' super-telephoto.
• Extra-Low Dispersion (ED) glass for outstanding picture quality. Combined zoom and focusing rings for fast handling. Focuses down to a close 8-1/2 feet (2.5m). Built-in cantilevered rotatable tripod collar for balanced tripod operation in either the vertical or horizontal format positions.
• Supplied with 95mm screw-in front lens cap and hood, carrying strap, and hard lens case. Photographic uses include photojournalism, sports, wildlife, and zoom blurs.

Specifications
Focal length/Aperture:
Lens construction:
Picture angle:
Diaphragm:
Aperture scale:
Exposure measurement:
Distance scale:
Weight:
Dimensions:
Attachment size:
Front lens cap:
Lens hood:
Lens case:

180~ 600mm f/8
18 elements in groups
13° 40'~ 4° 10'
Automatic
f/8 ~ f/32 on both standard and aperture-direct-readout scale
Via stop-down method
Graduated in meters and feet from 2.5m (8.5 ft) to infinity (oo)
3.4kg
105mm dia. x 403mm long (overall); 395mm extension from flange
95mm (P= 1)
Screw-in
Screw-in (HN-16)
CZ- 1860

Note: This lens is only available by special order. Rotatable tripod collar provided.

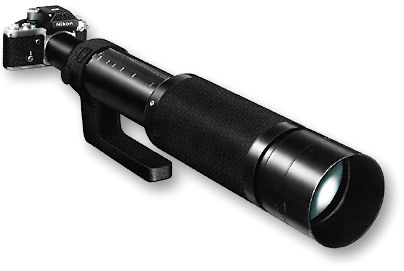

Zoom- Nikkor 360-1200 mm f/11 ED

Introduced in 1976 along with the widest wideangle lens in 35mm photography - the Nikkor 13mm f5.6. The Longest Zoom Lens in 35mm Photography

Sales Points

• Expansive super-telephoto zoom coverage ranging from 6°50' down to only 2°.
• Extra-Low Dispersion (ED) glass for outstanding picture 'quality.
• Combined zoom and focusing ring with 4 screw-in handles for rapid response.
• Built-in cantilevered rotatable collar for balanced tripod mounting in either the vertical or horizontal format positions.
• Focuses down to a close 20 feet (6m).
• Supplied with 122mm screw-in front lens cap and hood, carrying strap, and hard lens case.
• Photographic uses include photojournalism, sports, wildlife, solar and lunar photography, and zoom blurs.

Specifications

Focal length/Aperture:
Lens construction:
Picture angle:
Diaphragm:
Aperture scale:
Exposure measurement:
Distance scale:
Weight: -
Dimensions:
Attachment size:
Front lens cap:
Lens hood:

360 ~1200mm f/11
20 elements in 12 groups
6° 50'~ 2°
Automatic
f/11 ~ f/32 on both standard and aperture-direct-readout scale
Via stop-down method
Graduated in meters and feet from 6m (20 ft) to infinity (oo)
7.1kg
125mm dia. x 704mm long (overall); 696mm extension from flange
122mm (P= 1)
Screw-in
Screw-in (HN-17)
CZ-3612

Note: This lens is only available by special order. Rotatable tripod collar provided.

| Message Board | for your Nikkor Optics in a shared environment
| Message Board | Specifically for Dispose or Looking for new/used Nikon/Nikkor photographic equipment

Nippon Kogaku Rangefinder Resources | Nikon F | Nikon F2 | Nikon F3 | Nikon F4 | Nikon F5 | Nikon F6 | Nikkormat / Nikomat | Nikon FM Series | Nikon FE/ FA | Nikon EM/FG/FG20 | Nikon Digital SLRs | Nikon - Other models

Nikon MF RF-Nikkor lenses for Rangefinder cameras:- Main Index Page
Nikon Auto Focus Nikkor lenses:- Main Index Page
Nikon Manual Focus Nikkor lenses:-
Fisheye-Nikkor Lenses - Circular | Full Frame | Ultrawides Lenses - 13mm 15mm 18mm 20mm | Wideangle Lenses - 24mm 28mm 35mm | Standard Lenses - 45mm 50mm 58mm | Telephoto Lenses - 85mm 105mm 135mm 180mm & 200mm | Super-Telephoto Lenses - 300mm 400mm 500mm 600mm 800mm 1200mm |

Special Application lenses:
Micro-Nikkor Lenses - 50mm~55mm -60mm 85mm -105mm 200mm Micro-Zoom 70-180mm
Perspective Control (PC) - 28mm 35mm PC-Micro 85mm
Dedicated Lenses for Nikon F3AF: AF 80mm f/2.8 | AF 200mm f/3.5 EDIF
Depth of Field Control (DC): 105mm 135mm
Medical Nikkor: 120mm 200mm
Reflex-Nikkor Lenses - 500mm 1000mm 2000mm
Others: Noct Nikkor | OP-Nikkor | UV Nikkor 55mm 105mm | Focusing Units | Bellows-Nikkor 105mm 135mm
Nikon Series E Lenses: 28mm 35mm 50mm 100mm 135mm | E-Series Zoom lenses: 36~72mm 75~150mm 70~210mm

MF Zoom-Nikkor Lenses: 25~50mm | 28~45mm | 28~50mm | 28~85mm | 35~70mm | 36~72mm E | 35~85mm | 35~105mm | 35~135mm | 35~200mm | 43~86mm | 50~135mm | 50~300mm | 70~210mm E | 75~150mm E | 80~200mm | 85~250mm | 100~300mm | 180~600mm | 200~400mm | 200~600mm | 360~1200mm | 1200~1700mm

Tele-Converters: TC-1 | TC-2 | TC-200 | TC-201 | TC-300 | TC-301 | TC-14 | TC-14A | TC-14B | TC-14C | TC-14E | TC-16 | TC-16A | TC-20E

Recommended links to understand more technical details related to the Nikkor F-mount and production Serial Number:
http://rick_oleson.tripod.com/index-153.html by: my friend, Rick Oleson
http://www.zi.ku.dk/personal/lhhansen/photo/fmount.htm by: Hansen, Lars Holst
http://www.mir.com.my/rb/photography/hardwares/nikonfmount/lens2.htm
http://www.photosynthesis.co.nz/nikon/serialno.html

Recommended Reading Reference on Nikon cameras and Nikkor lenses | about this photographic web site

| Back | Main Index Page of Nikkor Resources | Back | Main Index Page of Pictorial History of Nikon SLRs

Home - Photography in Malaysia

Co-developed with my web buddy, Rick Oleson® & Denmark, Creator of the Nikon Repair Group Mailing-List; A contributing effort to Michael Liu's Classic Nikon SLRs and Nikkor optic site.

Credit: MCLau®, who has helped to rewrite some of the content appeared this site. Chuck Hester® who has been helping me all along with the development of all these Nikon websites; Lars Holst Hansen, 'Hawkeye' who shares the same passion I have; Ms Rissa, Sales manager from Nikon Corporation Malaysia for granting permission to use some of the official content; Ted Wengelaar, Holland who has helped to provide many useful input relating to older Nikkor lenses; Some of the references on production serial numbers used in this site were extracted from Roland Vink's website; Hiura Shinsaku from Nikomat Club Japan. Lastly, to all the good people who has contributed their own expeience, resources or kind enough granted permission to use their images of their respective optic in this site. It is also a site to remember a long lost friend on the Net. Note:certain content and images appeared in this site were either scanned from official marketing leaflets & brochures published by Nikon and/or contribution from surfers who claimed originality of their work for educational purposes. The creator of the site will not be responsible for may discrepancies arise from such dispute except rectifying them after verification. "Nikon", "Nikkormat", "Nippon Kokagu KK" & "Nikkor" are registered tradename of Nikon Corporation Inc., Japan. Site made with an Apple IMac.
