Lens Operation & other Functions

The EL2 is designed around a reflex (i.e., reflecting) mirror that enables parallax-free viewing/ focusing/composing through the lens mounted on the camera body. The use of a special mirror hinge system permits the inclusion of an extra-large reflex mirror, virtually eliminating image cut-off on the camera's focusing screen when using supertelephoto lenses or close-up accessories.

After the shutter release button has been triggered, and before the shutter begins its travel, the mirror swings rapidly upwards out of the optical path to enable the light to reach the film plane. After the shutter has completed its travel, the mirror returns to its original (lowered) position enabling again through-the-lens operation.

During the period that the mirror is moving upwards, the iris diaphragm of the lens mounted on the camera (if it is an automatic-diaphragm lens) is closing to the aperture selected. This permits the photographer to view and focus at full aperture, for the brightest possible image, yet have the lens stopped down to the taking aperture automatically just prior to exposure.

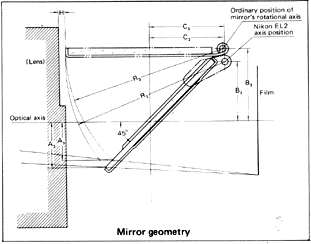

H: The clearance required between the ends of a lens barrel and a reflecting mirror.
A1: Distance from the end of Nikon EL2's mirror to the optical axis.
B1, C1: Dimensions that determine the mirror's position.
R1: Movement of the mirror.
A2, B2, C2, R2: The dimensions when a mirror is placed in ordinary axis position.

When certain special lenses, such as non-reflex viewing Fisheye-Nikkor lenses are mounted on the EL2, they interfere with the free movement of the reflex mirror.

When using these lenses, the camera's mirror lock-up lever provides the means to manually lift the mirror out of the way of the lens, thus enabling the lens to be used.

The operation of this lever is independent of other controls, and can be used at any time to lockup the mirror prior to shutter release, thus ensuring that any camera vibration that might otherwise blur the image is eliminated. This application is widely used in the fields of astrophotography and photomicrography.

When used with lenses or accessories fitted with meter coupling ridges, the meter coupling lever on the camera body should always be in the 'down' position.

However, when using the EL2 in conjunction with lenses or accessories without a meter coupling ridge, the coupling lever must be raised out of the way of the lens or accessory before mounting. As the meter coupling lever is locked in position when it is down, it must be unlocked before it can be raised. To unlock, simply depress the release, and while keeping the release depressed, lift the coupler up and back out of the way. The lens or accessory can then be mounted on the camera. Exposure determination should be carried out using the stop-down method.

Lens Mounting Flange.

The EL2 is fitted with the standard Nikon bayonet lens mounting flange for the attachment of any Nikkor interchangeable lens. The flange is machined from specially treated, hard-wearing steel to ensure precise lens seating and alignment throughout the life of the camera.

The bayonet design of the mount ensures quick lens change capability, requiring only 1/6th of a turn to mount or dismount the lens. When mounted, the lens is positively locked in place by a spring-loaded catch.

Lens Mounting Index.

This is in the form of a dot on the camera body adjacent to the lens mounting flange. The lens is aligned with the index to mount it.

Lens Release Button. As the lens is positively locked in place when it is mounted on the camera, it must be unlocked before removal. Depressing the lens release button unlocks the lens to permit removal.

Credit: The two illustrations other than the normal pix, were supplied by Technical & sales dept. Shriro (Malaysia), local distributor of Nikon in Malaysia, Singapore, Hongkong.
