Intervalometer MT-1 This precision solid-state timing control device enables accurate special-effects photographic techniques such as time-lapse, work-sampling, time exposure and delayed exposure.
 |
The MT-1 connects to the MD-2 at the front three-pin socket, via the special extension cord provided with the unit,- camera triggering operation is set via the various knobs and switches provided at the front of the MT-1. The Intervalometer MT-1 is battery powered to enable portable operation for shooting at almost any location. |
 |
 |
 |
| Other than the AC/DC Converter, an external power pack is handy for operating the camera in cold weather or to power the EE Aperture Control Attachment Unit. |
| Radio Control Set MW-1 This set, which consists of a compact transmitter and a receiver, provides wireless remote control photography with motorized F2 Nikon cameras. Its multi-channel capacity permits push button operation of up to three cameras, either simultaneously or individually. The cameras can be set for single-frame or continuous operation, depending on the requirements of the shooting situation. |
Modulite Remote Control Set ML-1 The ML-1 is designed for remote control operation of motor driven F2 Nikon cameras; its twin channels permit the independent operation of two cameras depending on the needs of the shooting situation. The cameras can be set for either single-frame or continuous operation. |
Simultaneous Firing of Multiple Nikon F2 bodies Two or more cameras may be fired in unison, either in single frame or continuous operation. Connect each camera with a motor drive, cordless battery pack and MC-4 remote cord. Then connect the red and black plugs on the remote cords to a single switch to trigger the motor drives together as shown in the illustration at right.
Mirror locked up 30 - 5O ms; Mirror operating 50 - 70 ms Note: The range of time delay slightly varies depending on the power source and voltage. The illustrations below show how to obtain correct timing interval. When the SC knob is in the "C" position, the on-off switch opens and closes the trigger circuit as shown below.
 |

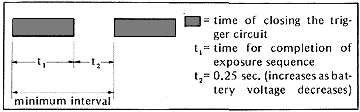

The minimum possible time interval depends on the position of the firing speed selector knob. The following table gives the minimum interval for each setting. |
|
Power Source / Firing Speed Setting |
H |
M3 |
M2 |
M1 |
L |
|
NC & AC/DC |
0.23(sec.) |
0.26 |
0.3 |
0.4 |
0.8 |
|
penlight |
0.26 |
0.3 |
0.35 |
0.6 |
1.1 |
At the " H" setting the mirror must be locked up. Shutter speeds slower than the ones indicated on the back of the motor drive are unusable.
 |

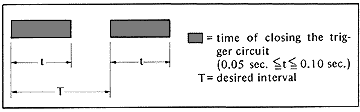

With the SC knob set at "S" the trigger circuit is opened and closed as shown below. The motor drive will begin to make exposures at a predetermined interval. Any shutter speed can be used, regardless of the position of the firing speed selector knob. |
For exposures longer than one second, use the "B" setting. At this setting, exposure time is almost equal to the time required to close the trigger circuit (t t ).
Accessories for Nikon MD-2 Motor Drive Unit: Camera Back MF-3 Use of the Camera Back MF-3 allows automatic film rewind stop.
SC Remote Cord MC-1 (1) Connects the motor drive to the grip head when the latter is removed for remote control. Length: 3m (10 feet).
 |
Connecting Cord MC-2 (2) Connects the motor drive to the AC/DC Converter MA-4. Length: 3m (10 feet) |
Coiled Cord for Pistol Grip MC-3 (3) Connects the trigger of the pistol grip to the motor drive. Remote Cord MC-4 (4) Connects the motor drive to a remote switch, timer or radio control unit. NC Battery Unit MN-1 Each unit supplies a 7.5V output when fully charged. Two are required to power the motor drive.
 |
Quick Charger MH-1 Recharges NC Battery Unit MN-1 in approximately three hours. |
 |
 |
 |
Shutter Release MR-1
The MR-1 screws into the remote terminal of the Motor Drive MD-2 and provides a choice
of trigger buttons for convenience when shooting at difficult camera angles.
 |
It is also threaded to accept the Nikon Cable Release AR-2 for remote control operation, copying and still-life shooting. |
Nikon
MD-2's Feature Lists:
• Can be used with any Nikon F2-series
camera without factory adjustment.
• Choice of single-frame operation
or continuous firing at speeds from 1 to 5 frames per second (fps).
•
Can be used at any
shutter speed for single-frame operation speeds from 1/4 to 1/2000 second for
continuous firing. Slowest usable shutter speed for each setting indicated
on the back of the unit.
• Automatic-resetting subtractive
type frame counter graduated from 36 to 0. An "S" index signals the
start position. The counter can also be used to preset the number of exposures
for continuous firing in bursts. The motor stops automatically when the preset
number of frames has been exposed.
• Automatic motorized rewinding in
about 7 seconds. Manual rewinding also possible.
• Automatic rewind stop terminals provided
for use with the Camera Back MF-3. The LED indicator lights up to indicate
that the film is being wound or that the film rewind has been completed.
• Cordless battery pack holds
10 AA penlight batteries or two NC battery units. MD-2 can also be
powered by AC current or other DC power sources within 10-15V range.
• Built-in relay for remote control
by wire or radio.
• Safety lock on the grip head
prevents accidental exposure.
• Dimensions approx. 147 (W) x
110 (H) x 77 (D) mm
• Weight approx. 470g
Achieving
Optimum Battery Performance:
1. New batteries: Between manufacturing and first use, all batteries exhibit
some drain. Therefore, care should be taken to purchase the newest (and freshest)
ones possible. To help you do this, some manufactures stamp the date of manufacture
on the bottom of each battery; ask your camera dealer for assistance in interpreting
the codes.
2. Temperature: Battery life ratings are based on operation at around 200C
(680F). At other temperatures, battery life is shortened. At O degree C, for instance,
battery life is shortened by as much as 2/3. Spare batteries should therefore be
kept available if operation in low temperatures is anticipated.
3. Continuous use: Batteries are drained much more quickly by continuous use
than by intermittent use.
4. Storage: When not in use, the batteries should be removed from the cordless
battery pack to prevent damage by leaking. To minimize drain during the period of
disuse, store the batteries in a cool, dry place.
5. Battery brands: Do not use mixed brands of batteries, nor batteries with
different model numbers. Also, avoid mixing new and old batteries since proper performance
will not be obtained and battery leakage into your MD-2 may occur.
6. Disposal: Do not dispose of batteries by burning. Also, for safety's sake,
do not disassemble batteries when disposing.
7. Polarity: When installing batteries, observe the voltage polarities carefully.
Reversal of the positive (+) and negative (-) terminals will result in leakage. If
leakage should occur, clean carefully or take your MD-2 to a external experienced
repair service centre (Unlikely Nikon will accept any unit even for general servicing).
