Nikon F & F2 Shared Resources: The 105mm Bellow Nikkor


105mm Bellow lens.jpg (7k)

105mm f/4 Bellows-Nikkor

weblibrary.gif   Nikon F | Nikon F2 | Nikon F3 | Nikon F4 | Nikon F5 | Nikon F6 -not ready | Nikkormat / Nikomat | Nikon FM | Nikon FE/ FA | Nikon EM/FG/FG20 | Nikon Digital SLRs | Nikon - Other models

Nikon Auto Focus Nikkor lenses:- Main Index Page
Manual Focus Nikkor lenses:- Fisheye-Nikkor Lenses - Circular | Full Frame | Ultrawides Lenses - 13mm15mm18mm20mm | Wideangle Lenses - 24mm28mm35mm | Standard Lenses - 45mm 50mm 58mm | Telephoto Lenses - 85mm105mm135mm180mm & 200mm | Super-Telephoto Lenses - 300mm 400mm 500mm 600mm 800mm 1200mm |

Nikkor Link.jpg

Index Page
  Special Application lenses:
Micro-Nikkor Lenses - 50mm~55mm -60mm 85mm -105mm 200mm Micro-Zoom 70-180mm
Perspective Control (PC) - 28mm 35mm PC-Micro 85mm
Dedicated Lenses for Nikon F3AF: AF 80mm f/2.8 | AF 200mm f/3.5 EDIF
Depth of Field Control (DC): 105mm 135mm
Medical Nikkor: 120mm 200mm
Reflex-Nikkor Lenses - 500mm 1000mm 2000mm
Others: Noct Nikkor | OP-Nikkor | UV Nikkor 55mm 105mm | Focusing Units | Bellows-Nikkor 105mm 135mm
Nikon Series E Lenses: 28mm35mm50mm100mm135mm | E-Series Zoom lenses: 36~72mm75~150mm70~210mm

MF Zoom-Nikkor Lenses: 25~50mm | 28~45mm | 28~50mm | 28~85mm | 35~70mm | 36~72mm E | 35~85mm | 35~105mm | 35~135mm | 35~200mm | 43~86mm | 50~135mm | 50~300mm | 70~210mm E | 75~150mm E | 80~200mm | 85~250mm | 100~300mm | 180~600mm | 200~400mm | 200~600mm | 360~1200mm | 1200~1700mm

Tele-Converters: TC-1 | TC-2 | TC-200 | TC-201 | TC-300 | TC-301 | TC-14 | TC-14A | TC-14B | TC-14C | TC-14E | TC-16 | TC-16A | TC-20E

Recommended links to understand more technical details related to the Nikkor F-mount and production Serial Number: by: Hansen, Lars Holst

This lens is designed exclusively for use with the Bellows Focusing Attachments. Focus is only with the bellows. Permits crisp and sharp close-ups with ample working distances. Continuously focused from infinity to 1/1.1X with the PB-3 Bellows, or to 1.3X with the PB4 or PB-5.

The lens gives superb resolution for close-ups and macrophotography. The Bellows-Nikkor has no focusing device of its own - it is focused by the extension or contraction of the bellows focusing attachment.

The manually preset lens diaphragm can be stopped down to f/32 with 1/3 intermediate click-stop settings. (Black dots between the inscribed f-numbers indicate the two intermediate settings between the inscribed f-numbers.)

With the long focal length of 105mm, the lens offers natural reproduction of perspective, while affording the photographer greater working distance for better subject handling and illumination.


Focal length: 105mm
Maximum aperture: 1 :4

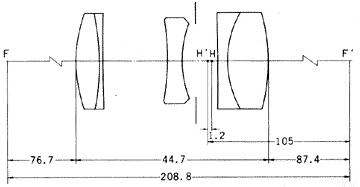

Lens construction: 5 elements in 3 groups
Picture angle: 23°20'
Distance scale: Not integrated,
Focusing: By means of Bellows Focusing Attachment
Aperture scale: f/4 - f/32; black dots between f-numbers indicate intermediate settings.
Aperture diaphragm: Manual preset
Magnification: 00 - 1.3X (w/PB-4 or PB-5 attachment)
Attachment size: 52mm (P=0.75)
Filter: 52mm screw-in
Dimensions:64mm dia. X 55mm length; (2-1/2 in. X 2~3/16 in.)
Weight: 230g (8.1 oz)
52mm snap-on front cap,
plastic case type L,
rear cap type F,
52mm screw-in or snap-on lens hood.

Straight forward optical construction contributing to its excellent image flatness of

| Back | to Index Page for Macro/Micro
