Manual and autofocusing with Nikon F4

HTML File size: 38k Loading now ..cont.

Focus Mode Selector: One of the inconvenience in handling found in most early Nikon AF SLR camera is, it requires the user to set manually the type of lenses and the mode of focus manually each time you setup the camera for shooting. Basically, the system cannot just simply by sensing whether the lense has been set by the user to manual focus or AF (while this is excusable when you take into consideration the great backward compatibility of lenses with this camera) but requiring the photographer to set the camera each time whether to shoot continuously or singularly is ridiculous because the firing mode at the shutter release button has included that.

There are three focus modes available through a focus mode selector provided on the camera body. Each mode corresponds the type of lense and/or selection of either AF or MF operation.

Many photographic topic such as this interior view scene may not require AF due to to extensive elements inside the composition. But when you are reverting to MF (regardless AF/MF Nikkor), you would need to set up the camera for MF operation, first by setting the focus mode to "M" setting. Tedious, you can say.

<<< ---- Image from my copyright-free image collection. Malaysian Internet Resources

Focus tracking. This function enables accurate autofocus of moving subjects by measuring the moving speed in the picture frame. Normally, an AF SLR, when taking a picture of a subject moving toward or away from the camera, detects the distance from camera to subject, moves the lens until correct focus is obtained, and then releases the shutter. However, during the period between focus detection and exposure, the subject may move closer or farther away from the camera and will thus be out of focus. The focus tracking in the F4 has a computer-assisted follow-focus system which actually calculates the anticipated moving subject's position at the moment just before shutter operation. It's activated automatically when it senses moving subjects when you are on continuous autofocus low-speed operation, and it's automatically canceled when subject speed becomes erratic. Viewfinder signals keep you informed of status.

Focus is detected at least twice before the exposure. The camera measures the difference between the first and second focus detection to ascertain the subject's moving speed in picture frame. With this information the camera then compensates for the time required for lens movement and drives the lens into the proper position until the exposure to obtain correct focus, resulting in consecutive focused images.

To utilize this function, first set the focus mode to Continuous Servo and film advance mode to Low-Speed Continuous (CL). This function automatically reverts to normal operation when the subject changes direction or moves erratically. It's another important F4 tool, designed to expand your picture-taking universe.
Credit: Image was scanned from Nikon's Sales Manual.

Operation: Lightly press shutter release button to start Focus Tracking. Confirm both arrows () appear in the viewfirider, then fully depress shutter release button to take an in-focus picture. With Focus Tracking, even if the subject is in focus, the in focus indicator () does not appear. If the subject speed becomes erratic, Focus Tracking will be automatically deactivated and standard continuous focusing will operate. Focus Tracking ability will vary according to subject's brightness and movement, lens in use and shooting distance. During Focus Tracking, the subject must remain within th focus brackets.

Autofocusing with AF Illuminator Where existing light contrast or subject detail is insufficient for autofocus operation, the use of a Nikon Autofocus Speedlight (SB-28, SB-27, SB-26, SB-25, SB-24, SB-23, SB-22 or SB-20) is recommended. Each of these speedlights enables autofocus operation even in total darkness, by emitting an infrared patterned beam of light onto the subject. Note that AF illumination works only with the Nikon F4 set in the Single Servo Autofocus mode.

Autofocus Lock ("AF-L"). Pressing the AF-L (Autofocus Lock) button enables the Nikon F4 to lock the focus. Simultaneous lock of AF-L and AE-L is possible. "'FREEZE FOCUS" - is another great function in the F4. It allows automatic shutter release when subject enters a pre focused distance - available with Nikon MF-23 and/or the 250 exp. MF-24 Multi-Control Back. i.e. with the shutter button fully depressed, the shutter is automatically fired when a subject comes into a preset manually focused position. This function is recommended for sports races because the racing course is usually known beforehand. It also works well in wildlife remote control photography, scientific, forensic and other technical photography.

NOTE: With the AF-L button depressed, focus will be locked even if you remove your finger from the shutter release button. AF-L button can also be used in Single Servo autofocus mode - BOTH WAYS allow off-center autofocus operation as well. Simultaneous use of AE-L (Auto Exposure Lock) button is recommended. In this case, turn AF-L/AE-L simultaneous lock lever to and press AF-L button.

Manual focusing with Electronic Rangefinder Well, regardless if you are using an AF Nikkor lense and/or an older MF Nikkor - amazingly, the AF system in the Nikon F4 still can contribute to assist the photographer in another form. You can use the standard Advanced BriteView B screen in the Nikon F4, and focus with the clear matte screen or try the Electronic Rangefinder. Both operate naturally in traditional Manual focusing. If you prefer, there are interchangeable focusing screens, with your choice of optical rangefinder devices such as microprism and shade-free split-image rangefinder. Augments optional focusing methods, and is sensitive enough for focusing in light as dim as EV-1 - the equivalent of less than just one candlelight. Nikon's basis of comparison of the AF system in the camera - can anyone's eyes focus in that kind-of light ? Yes, of course but may not be efficient enough, that is all. But to those Nikon photographers who may be migrating from MF system previously, a wide range of MF lenses may still be useable with the Electronic Rangefinder inside the F4. As a guideline, lenses with maximum aperture smaller than f/5.6 are deemed unsuitable with this feature.

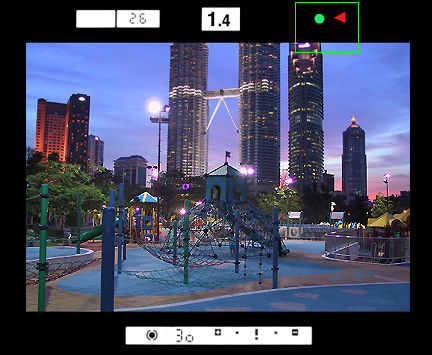

Operation guide: With electronic range finder, set the focus mode to "M" first (if you are using an AF-Nikkor lense, set the "A-M" switch on the lense to "M" as well. Keeping shutter release button lightly pressed, rotate lens focusing ring manually and watch focus indicator LEDs inside the viewfinder. if arrow (rear focus) or arrow (front focus) appears, manually rotate lens focusing ring in the direction indicated until the in-locus indicator LED appears. off 4 arrow does not disappear when you turn focus ring counterclockwise to the limit, the subject is closer than the closest focusing distance of the lens- Move away from the subject. Confirm in-focus indicator LED appears, then fully depress shutter release button.

Special Focusing Situations To successfully focus, whether using the F4's Electronic Rangefinder, an optical rangefinder, or a clear matte field, the subject must be reasonably illuminated and have sufficient contrast. If the red focus-not-possible indicator "X" appears, manually focus by estimating distance or choose an alternate focus target with the same distance, lock focus, then recompose.

The following situations are examples that are difficult to focus and require greater concentration to secure correct focus 1) When shooting the following: a) Bright subject with a shiny surface, such as silver or aluminum. b) Strongly backlit subject. c) Scene with variety of subjects located at different dislances. 2) When using a linear polarizing filter. or special filter such as a soft-focus filters. (Circular polarizing filler can be used for autofocus operation). Note: R60 (red) and 056 (Orange) filters will interfere with Electronic Rangefinder and autofocus operation. When using these filters, focus manually.

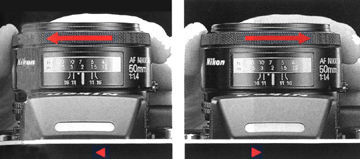

NOTE: For manual control of the lense focus ring, set focus mode selector is set to the ("M") position will prevents the autofocus coupler on the lense mount from rotating. Focus status (see illustration) is indicated by the viewfinder LED, so the user knows which way to turn the lens focus ring. With Nikon lenses other than AF Nikkors' the autofocus coupler will not move whichever focus mode is selected. Focus status is indicated also by the viewfinder LED.
