The NIkon F4 retains the modular design concept of the F-series. It permits interchangeable prisms to be mounted individually for specific photographic needs. While all other competing brands have dropped this feature on their flagship model(s), Nikon remains as the sole 35 mm SLR manufacturer that still offers this flexible and versatile option in a system camera. If you have been observing the changes in design, in particular functions of the interchangeable prism adopted for the various generations of Nikon professional F-series models, it breaks down as follows: Nikon F / Nikon F2 series - non metered eye level, waist level, 6X magnification and other metered prisms. The Nikon F3 uses a different design as its metering cell is installed inside the camera body and the single-multi task SPD cell eliminates any need for the use of an external metered finder. There is no metered prism available for the Nikon F3 except in the case of the Nikon F3AF with AF and/or electronic range finder (depends on lens types). Both Nikon F4 and Nikon F5 split the metering cell(s) BOTH inside the camera body as well as on the prism which resulted in certain metering only available with the matched prism(s) in use.

<< ---- Image from my copyright-free image collection. eofooTM.gif Malaysian Internet Resources

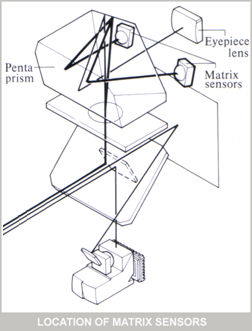

When the multi-meter prism DP-20 is used, all the three metering patterns (classic center-weighted, spot and Matrix metering) are available to be used. But if an optional prism,such as a waist level DW-1 or a 6X High-Mag. finder DW-21 is used, you can only enjoy spot metering as the spot meter is built inside the camera body while the remaining center-weighted and Matrix metering options are controlled by different metering cells residing inside the metered prism DP-20.

Selection of the metering system cannot be easier, there is a dial located at the side of the DP-20 for you to switch to your desired metering pattern. There are a total of four viewfinders designed specifically for the Nikon F4. Other than the standard multi-metered DP-20, an action finder DA-20, 6X high magnification and a waist level finder are available as optional accessory. Interchangeable Finders In addition to the standard Multi-Meter Finder DP-20, the Nikon F4(s) accepts three other interchangeable viewfinders. The chart below shows the combination of viewfinders and metering systems operative.

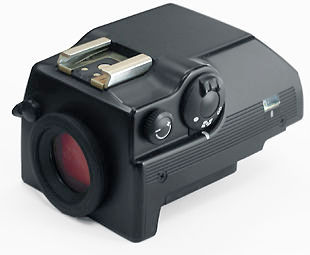

<<< ---- The standard DP-20 eyelevel high eyepoint finder - don't leave home without it... as it offers the best available options in various metering system with the Nikon F4.


Despite the plethora of picture taking information made available with the use of the many finder types. The one significant achievement of the Nikon F4 is its ability to retain a 100% picture field coverage. Next, the role of a prism in the F-series was not just confined to an accessory as in the case with the various finders designed for the Nikon F3. As the standard eyelevel finder for the F4 the DP-20 offers a multitask of functions such as diopters adjustments, TTL flash control, focus screen exposure compensation, view finder illumination and the most important of them all - the control of TWO of the three metering systems in the NIkon F4 camera.

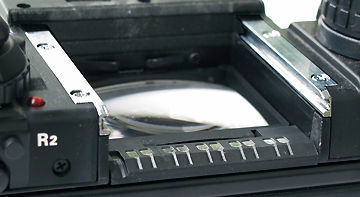

The detaching/mounting system employed in the Nikon F4 uses the New Canon F-1/Pentax LX type which consists of a rigid double rail direct mounting that secures and facilitates easy mounting and detaching. Although it cannot claim to be very original. I feel this is an improvement over the double hook-type which is used on the previous Nikon F3, even though the F3's design has equally provento be quite reliable.

The ADR opening (shown with red rectangle) ensures the Nikon F4 still shows the aperture value photographer select on the lense's aperture ring by mean of the aperture direct readout scales (on the lense section) to be seen through the viewfinder. The yellow rectangle shows one of the two LCD illumination windows in the DP-20 (more info below).

Credit: Image courtesy of Mr. Jochem Wijnands ®. Jochem is a professional photographer and has an excellent online portfolio and you may also contact via his email. Image copyright © 2003. All rights reserved. Please respect the visual property of the contributing photographer.

The two illumination windows are designed for the purpose of aiding photographer with a clearer view of the LCD displays inside the finder when one operates the camera in ambient light (when you need to illuminate the finder in dim light, just switch on the Finder Illumination Switch located at the base section of the shutter speed ring). Basically, Nikon F5 with DP-30 Multi-meter finder's display system differs from the F4 as it only has an ADR and a full length LCD panel locates at bottom of the picture frame. It also eliminates frame number and exposure compensation value in the separate LCD panel design used in F4 and it is a more straight forward in comparison.

Note: The dual LCD illumination panels only available with Multi-Meter DP-20 finder and the rest of other alternate prisms for Nikon F4 do not have such design. When working in unfavorable light condition with any of the other optional finders for the F4, and If you need a fair amount of illumination to view the info in the LCD display, use the Finder illumination switch instead but please take note, continuous use of the illumination switch may drain the power of the camera. I have tried on mine but the illumination of LCDs only shows briefly and went off immediately after each exposure.
