Lense compatibility issue - the best kept secret
To many old time photographers (and all those cost conscious smart ass photographers .. hehe) - one of the most attractive feature in the F4 is its linkage to bridge two generations as a MF and AF Nikons - as no other Nikon models offers you with such a GREAT system compatibility. It is the ONLY professional grade Nikon that permits your to enjoy Matrix metering with Ai Nikkor lenses - probably well over hundreds of them in different lens types and versions ! Similarly, it is also the sole AF Nikon that permits the use of any non-cpu Nikkor lense while all three metering patterns (spot, matrix, center-weighted) can still be able to retain full functionality, great stuff, huh ?

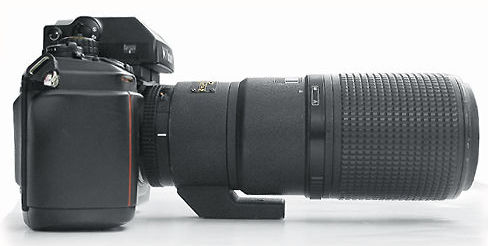

<<< ---- All images from my copyright-free image collection.
Malaysian Internet Resources
The current Nikon F5, with its lense flange converted to a new types (changeable with Nikon service centre) practically signaling with Nikon telling you " ... please buy some of our AF Nikkor..". To be fair, it is still possible to use old equipment on a F5 (many other Nikons are compromised with no Matrix metering and aperture value shown in the finder). Anyway, as Nikon F5 has far superior technologies in many other departments (especially in the areas of metering, AF, flash and its new data input system); so a comparing F4, if those gimmicks are your priorities and financial allocation is also not an issue) just don't hesitate, dump your F4, get a F5 then ! Why ? because F5 is better and that is why it is an upgrade.
Credit: Image courtesy of Mr. Jeff. Jeff has a personal photo gallery and occatioally trading some used equipment at his own Ebay Store. Image copyright © 2003 All rights reserved. Please respect the visual property of the contributing photographer.However, as F4 was introduced barely a few years after Nikon released their first body integrated AF SLR, Nikon F-501 (1986) and followed by a far superior AF performance camera, F801 in 1988. One of the main purpose with these entry level models with an overall designing concept was mainly aiming to lure in traditionalist MF SLR users who may have established a good collection of MF Nikkor lenses. Frankly, I would like to point out here that early days of AF-Nikkor lens development was so bloody slow that there were hardly any Nikkor lense of significant interest to excite anyone. An interim measure Nikon took was, they cleverly designed a working AF accessory called TC-16A AF-Converter. The TC-16A permits transformation of a few dozens of the MF Nikkor lenses as a virtual working AF-Nikkors with those few early AF SLRs (I remembered there wasn't * even an AF 600mm lense when the camera was introduced !).
* NOTE: the first super Tele AF-lense was a AF Nikkor 300mm f/2.8s ED-IF introduced in November, 1977; it followed with an AF Nikkor 300mm f/4.0 ED-IF in 1988. The first AF-I lense was an AF-I Nikkor 300mm f/2.8 ED-IF in 1992 along with the first 600mm lense in AF-I configuration (AF-I Nikkor 600mm f/4.0D ED-IF); another AF-I lense, AF-I 500mm f/4.0D ED-IF was introduced a year later in 1993. As a reference, the first AF-S Nikkor lense was only being introduced in 1996.
As a guideline, Nikkor lenses usable with each metering system can be as followed:
* Includes Nikon Series E lenses; ** Simplified Matrix (AMP) mode.
lenses
Signals
Exposure modes
of
fmm
EE
AMP (Matrix)
Center-Weighted
Spot
CPU built-in Nikkor lenses (AF)
MF Ai -Nikkor lenses *
MF Ai-Nikkor lenses with aperture f/2.8 or faster
MF Ai-Nikkor lenses with aperture f/2.8 or slower
MF Ai-Modified Nikkor lenses with aperture f/2.8 or faster
MF Ai-Modified Nikkor lenses with aperture f/2.8 or slower
Nikon Auto Focus Nikkor lenses:- Main Index Page
Nikon Manual Focus Nikkor lenses:- Fisheye-Nikkor Lenses - Circular | Full Frame | Ultrawides Lenses - 13mm15mm18mm20mm | Wideangle Lenses - 24mm28mm35mm | Standard Lenses - 45mm 50mm 58mm | Telephoto Lenses - 85mm105mm135mm180mm & 200mm | Super-Telephoto Lenses - 300mm 400mm 500mm 600mm 800mm 1200mm |
Index PageSpecial Application lenses:
Micro-Nikkor Lenses - 50mm~55mm -60mm 85mm -105mm 200mm Micro-Zoom 70-180mm
Perspective Control (PC) - 28mm 35mm PC-Micro 85mm
Dedicated Lenses for Nikon F3AF: AF 80mm f/2.8 | AF 200mm f/3.5 EDIF
Depth of Field Control (DC): 105mm 135mm
Medical Nikkor: 120mm 200mm
Reflex-Nikkor Lenses - 500mm 1000mm 2000mm
Others: Noct Nikkor | OP-Nikkor | UV Nikkor 55mm 105mm | Focusing Units | Bellows-Nikkor 105mm 135mm
Nikon Series E Lenses: 28mm35mm50mm100mm135mm | E-Series Zoom lenses: 36~72mm75~150mm70~210mm
MF Zoom-Nikkor Lenses: 25~50mm | 28~45mm | 28~50mm | 28~85mm | 35~70mm | 36~72mm E | 35~85mm | 35~105mm | 35~135mm | 35~200mm | 43~86mm | 50~135mm | 50~300mm | 70~210mm E | 75~150mm E | 80~200mm | 85~250mm | 100~300mm | 180~600mm | 200~400mm | 200~600mm | 360~1200mm | 1200~1700mm
Tele-Converters: TC-1 | TC-2 | TC-200 | TC-201 | TC-300 | TC-301 | TC-14 | TC-14A | TC-14B | TC-14C | TC-14E | TC-16 | TC-16A | TC-20ERecommended links to understand more technical details related to the Nikkor F-mount and production Serial Number:
http://rick_oleson.tripod.com/index-153.html by: my friend, Rick Oleson
http://www.zi.ku.dk/personal/lhhansen/photo/fmount.htm by: Hansen, Lars Holst
http://www.mir.com.my/rb/photography/hardwares/nikonfmount/lens2.htm
http://www.photosynthesis.co.nz/nikon/serialno.htmlBasically, the birth of the F4 in 1988 has served a few business objectives: Nikon has tried to offer existing MF photographers a choice in converting to use AF by preserving photographer's investment of MF equipment they have owned. Next, it has also opened up a gateway for non-Nikon users (in particular users of MF Canon and Minolta users) who may have felt betrayed with the dropping of support for older MF mount systems and wish to built another camera system from scratch. Well, from a marketing point of view - the few measures Nikon has taken were quite attractive to many potential buyers. Firstly, it came with an option of either using new AF lenses, or has an alternative way of sourcing old, used MF Nikkors which can easily be converted to AF via a Converter was quite smart. This business strategies has worked very well during the initial years and sales of Nikon F4 was indeed outnumbered comparing labels combined. Well, probably the early success could have misled the management firmly believed the F4 can sustain its popularity all the way to the next generation F5 - just like what they have anticipated with previous three generations of the single digit F bodies. Well, called it over confident or underestimate underlying user's desire for better improvement, this has not been working too well at later years of its product cycle. More importantly, the far superior AF architecture of competing brand such as Canon's new electo-optical system was indeed a fatal blow to the Nikon AF frameworks. But to many Nikon faithful, Nikon F4's strength was such a blessing to all which has proven it to be one of the most adaptable AF Nikon ever.
Probably, the F4 series could have been last F-series with a traditionally camera controlled features. it combines with its great MF and AF system compatibility, a true professional grade reliability and strength designed specifically to stand up severe punishment, with a far advanced metering system in both ambient and flash exposure control as compared to any previous F-bodies; a refined, incredibly ease, silky smooth and positive automated film transport system and retaining a modular body design to accept many interchangeable system accessories to serve differing professional requirements - the F4, although being labeled as an aged system in its AF but still possess a strong marketing elements which may appeal to many smart, seasoned serious amateurs. So, if in a scenario where speedy AF tracking feature is not a priority in your photography, the overall system integrity and compatibilities alone can easily be good enough to offset its aging factor that may put some hesitating minds back to positive thinking - this is one reason why the Nikon F4 still has its ever steady demand while still preserving its good basic value even if it is a decade and a half old AF SLR camera model.

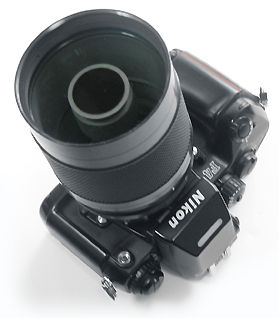

<<< ---- Image from my copyright-free image collection.| Previous | NEXT | 6/7 Some minor hickups and a quick summary
