MF-28 Multi-Control Function Data Back
Instruction Manual - Part IV

File size: 27K HTML Loading.....

To set Fixed Number For practice, set any desired number, as in this example 97 01 02.

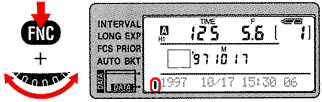

1. Select In-Frame Data Imprint function.

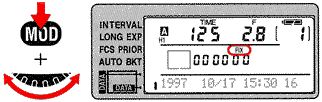

2. Select Fixed Number While pressing MODE button, rotate the camera's Main Command Dial until the LCD shows a number with "FIX".

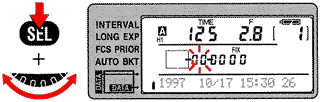

3. Activate blinking of left-hand two-digit number.

While pressing SELECT button, rotate camera's Main Command Dial until the left-hand two-digit number starts blinking.

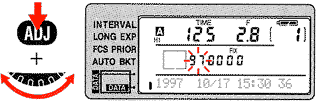

4. Set left-hand two-digit number. While pressing ADJUST button, rotate camera's Man Command Dial until 97 appears.
5. Set center and right-hand two-digit numbers.

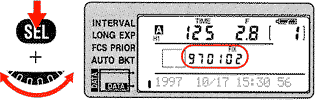

6. Complete setting the Fixed Number. While pressing SELECT button, rotate camera's Main Command Dial so the indication appears without blinking. Note: If you change battery, the Fixed Number will be reset to 000000.

About Between-Frames Data Imprint Function

You can imprint data between the frames: * To prevent loss of between-frames data during development, ask the photo lab not to cut the film. * With film advance mode set at CH or at extremely low temperatures, LCD response becomes slow. For data other than Fixed Number, this may cause incorrect data imprinting.

(1) Year/Month/Day/Hour/Minute Date/Time with Caption up to 8 characters Between frames, you can imprint up to eight characters with the Year/Month/Day/Hour, Month/Day/Hour/Minute or Day/Hour/ Minute/Second display.
(2) Year/Month/Day/Hour/Caption up to eight characters
(3) Month/Day/Hour/Minute/Caption up to eight characters
(4) Day/Hour/Minute/Second/Caption up to eight characters
(5) Caption up to 22 characters Between tames, you can imprint up to 22 characters with no other data.

(6) Frame Count-Frame number shown on camera's LCD You can imprint the actual film frame number on the camera's frame counter. As you release the shutter, the number in the Frame Count display increases by one.

(7) Shutter speed/Aperture - shutter speed and aperture set on the camera body

You can imprint the shutter speed and aperture set on the camera. Note: You cannot adjust the displayed data.

Example 1:1/125 sec. and f/5.6

(8) Compensation degree for Auto Exposure Bracketing While performing Auto Exposure Bracketing, you can imprint the compensation degree between frames. You cannot select Compensation Degree for Auto Exposure Bracketing without Auto Exposure Bracketing set on the MF-28,

(9) Caption up to 18 characters/Year (4-digit) Between frames, you can imprint up to 18 characters including the year (four-digits). Inputting "(C)" and the photographer's name, for example, provides the data you need for a copyright. The year indication is taken from date/time setting, and cannot be adjusted using this display.

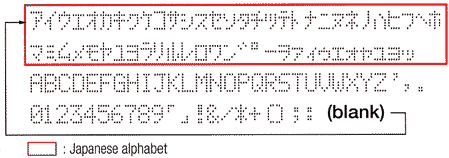

About CAPTIONs: the MF-28 can input the following characters

To Set Between-Frames Data Imprint Function

1. Select Between-Frames Data Imprint function. While pressing FUNCTION button, rotate camera's MainCommand Dial until the function indicator appears next to the Between-Frames Data Imprint symbol.

2. Select data to be imprinted. While pressing MODE button, rotate camera's Main-Command Dial until desired data appears. You can change data to be imprinted anytime the function indicator appears next to the Between-Frames Data Imprint symbol.

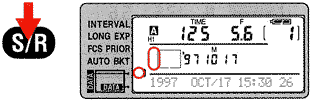

3. Set Between-Frames Data Imprint function. Press SET/RESET button and confirm that the function set indicator appears next to the Between-Frames Data Imprint symbol. Data imprint position indicator shows data will be imprinted between frames.

4. Fully depress camera's shutter release button to take the picture and imprint data. If you have already set the In-Frame Data Imprint function, the data imprint position indicator shows that data will be imprinted both between frames and in-frame.

To cancel Between-Frame Data Imprint function, select Between-Frame Data Imprint function, then press SET/RESET button so the function set indicator (I next to Between-Frame Data Imprint function disappears.
