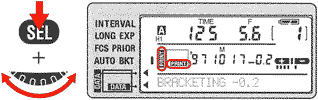

6. Access number of frames. While pressing SELECT button, rotate camera's Main Command Dial until FRAME and the blinking indication for number of frames appear.

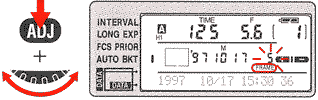

7. Set number of frames. While pressing ADJUST button, rotate camera's Main Command Dial to set desired number of frames.
8. Confirm exposure compensation display. The exposure compensation display shows exposure status for each frame.

Continuous shooting with Continuous Servo AF or manual focus: Depressing the camera's shutter release button triggers as many shots as the number of frames set. Removing your finger from the shutter release button before the set number of shots is taken stops the operation. To take the remaining shots, depress and hold the shutter release button again.
In continuous shooting with Single Servo AF: When the subject is in focus for the first shot, depressing the shutter release button and holding it in triggers as many shots as the number of frames set, Removing your finger from the shutter release button before the set number of shots is taken causes the operation to stop. To take the remaining shots, depress and hold the shutter release button again.
In single-frame shooting: Camera takes as many shots as set--one shot each time you depress the shutter release button.

1). Cancel Auto Exposure Bracketing. Press SET/RESET button and confirm function set indicator next to the Auto Exposure Bracketing symbol disappears. If you have selected Compensation Degree for Auto Exposure Bracketing as a data to be imprinted, canceling Auto Exposure Bracketing cancels Compensation Degree for Auto Exposure Bracketing and activates Caption of up to 18 characters Near (4-digit) as a data.

Note: Auto Exposure Bracketing and the camera's Custom Settings are discussed in detail in the F5 instruction manual.

Combining MF-28 Functions The MF-28's functions-In-Frame Data Imprint, Between Frames Data Imprint, Interval Timer, Long Time Exposure, Focus-Priority (Freeze Focus), and Auto Exposure Bracketing can be combined. When combining functions, note the following:

Combining Interval Timer and Long Time Exposure functions

* Setting camera's shutter speed to resets the Interval Timer function. To combine Interval Timer and Long Time Exposure functions, first set the Long Time Exposure. * If you try to set the interval time to less than the Long Time Exposure duration +2 seconds, the function set indicator next to the Long Time Exposure symbol blinks twice to recommend a longer interval time.

Combining Interval Timer and Auto Exposure Bracketing functions First set Interval Timer then set Auto Exposure Bracketing. The number of frames set for Auto Exposure Bracketing has priority over the number set for Interval Timer. Setting Auto Exposure Bracketing causes the function set indicator () next to Interval Timer symbol to blink twice, indicating frames set for Interval Timer have been automatically canceled, Canceling Auto Exposure Bracketing resets to number of frames for Interval Timer.

Combining Auto Exposure Bracketing and Long Time Exposure functions Without flash: Will take your set number of frames but exposure will not be compensated. With flash: Will take your set number of frames with compensated flash output level.

Tips on MF-28 Care

* Do not subject the MF-28 to shock or apply any sort of pressure to the LCD panel.
* Do not use clearing fluids to clean the MF-28.
* Use the MF-28 within a temperature range of -10°C (14°F) to +50°C (122° F).

About Batteries

* Do not use any type of battery other than the CR2025 lithium battery.
* Do not disassemble batteries or dispose of batteries by burning.
* Keep batteries away from infants and small children. If a battery is accidentally swallowed, call the doctor immediately; materials within batteries can cause serious injury.
