Canon 160E - System Flash Model - Index Page

File size: 63K HTML Loading...

Additional information relating to Canon Speedlite 160E

Introduced in 1988. Originally designed for the Canon EOS 850/750, this ultra-compact flash provides TTL program flash, firing automatically in low light conditions or whenever the need for fill-in flash is detected. The Speedlite 160E has a Guide Number of 52 (ISO 100, feet).

The 160E features lithium battery power, for recycling time that's almost instantaneous and its built-in AF auxiliary light provides autofocus operation in complete darkness up to a distance of 16.4 feet. Its slim and compact size make it a great companion for travel even with the older models like
Canon EOS 620, 630 and 650. The portability and compactness makes it a perfect companion flash for traveling - so, even if you are using a EOS-1N, why not ?? As this flash is the most compact unit that offer most basic TTL features with your EOS models. In 1990, Canon replaced the 160E with an upgrade called Speedlite 200E.

Technical Specification: -

Type: Direct-coupling clip-on type TTL automatic flash (w/auxiliary preflash for AF)
Attachment: Clip-on
Synchronization: 1 St. curtain sync.
Guide Number: 52 (ISO 100 feet)
Flash Coverage: Covers the field of view of 35mm lens
Recycling Time: 0.3 to 1.7 sec.
Number of Flashes: 400 to 4,000
Color Temperature: Same as Daylight
Flash Duration: 1 ms. or less
Flash Control System: TTL automatic control by metering light reflected from the film plane. With
Canon EF-M, full power at each burst
Flash Coupling Range: 2.2 to 18.3 ft.
Power Source: One 6V Lithium Battery (2CR5)
Dimensions (WXHXD): 25/16ffx3'/4ff X2'/1 6' (59X83X52mm)
Weight: 3 oz. (85g) without battery
Product code: C50-0641

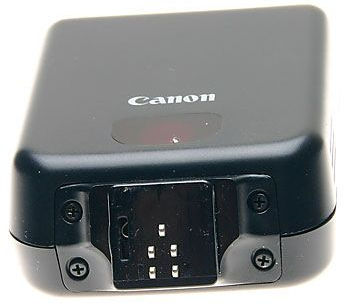

PBusta_Canon160E_A.JPG PBusta_Canon160E_D.JPG

Suggestive weblink:- Canon Flash Resources at or Bob Atkin Flash FAQ section; External Review of Canon 160E by Julian Loke

Credit: All images appeared herein courtesy of Mr. Elle of®, U.K.. The Company also maintains an active Ebay Store, trading many photo equipment of various labels. Image(s) copyright © 2005. All rights reserved. Please respect the visual property of the contributing photographer.
