The Nikon MD-12 Motor Drive
Introduction



File Size: HTML Page (17k) Loading ...

The MD-12 Motor Drive Unit is probably one of the longest serving accessories in the Nikon photographic system. It is still in service today because of its necessity to supplement the current FM2n. It is an important accessory because other than the earlier Nikkormat, the bigger, bulkier professional camera models in the F series before the Nikon F4 and the super compact models in the EM & FG series Nikon SLR cameras, it can fit and shared among virtually all the mid compact models in FM, FE, FE2, FM2, FM2(n), the multimode Nikon FA and the Nikon FM3a.

MD-12 is essentially an upgrade of the MD-11, launched together with the Nikon FM and FE in 1977 and 1978. In fact, with the introduction of the MD-12, the Nikon FM also has an upgrade with the removal of the shutter release lock for manual and motor driven film advance selector (FM's serial number below No.3,000,000 - I guess the owners of second hand retail shop will kill me for this). Since then, there is much major changes other than at one stage, Nikon has rearranged the circuitry for the pilot lamp to function in the MD-12.

MD12 Mix dimension.jpg (15k)
This Motor Drive from Nikon is impressive enough, performs almost flawlessly in operations. If you can still live with the moderately slow 3.5 fps and the lack of an auto film rewind feature part is its dependability and ruggedness. I don't think any MD-12 users have doubt this fact. But most of all, you shouldn't think the motor drive is an special accessory. Just think of it as a normal supplement to your camera for a more enjoyable photography. Other than the slight drawback of additional weight added on to your compact body, it presents some very strong reasons to consider such added on.

Key element for attaching a motor drive on your camera is responsiveness. Where it always place you ready for the next shot without even have to handle another task of manual film advance. In situation where lighting is tricky, bracketing exposures with variable apertures can't be swifter. Good balance and comfortable hold is another, especially when working with long telephoto or zoom lenses. You can even mix with some basic camera features in the camera to experiment different photographic effects, like rapid multiple exposures etc. The terminal in front of the hand grip opens up plenty of photographic opportunities Apart from let you go into remote-control photography in many wireless, unmanned operations with the Nikon dedicated accessories (From 3 meters (MC-10 Remote Cord), 60 meters (ML-1), 700 meters (MW-1) or interval time lapse (MT-1 Intervalometer), you can even convert your motor drive cheaply for vertical shooting with device like MR-2. Not convince ? Its power efficiency is a top rated 100 rolls of films with just per set of eight alkaline cells, thus, the breakdown cost per frame is minimal. The hybrid IC has took many years to develop and perfect, hence, proved its reliability test over the years, it also act as a variable firing rate device, monitoring the firing speed at any time, peak at 3.5 fps at higher speeds while automatically adjusts itself to specific speed selected at the lower speed range in auto mode. The trigger button behaves exactly like the camera, light depress to activate the meter and turn off after 60 seconds of inactivity to conserve power, besides, it has a single mode or continuous mode for rapid sequential power advance.

A slight variant of the Nikon  MD-12

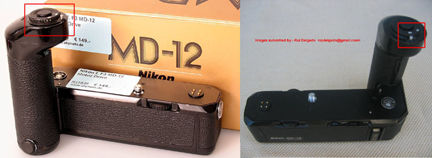

" ... I been browsing your site for about 4 years now. Its a great site a really good reference for collectors. Anyway, I was wordering if you can help me. I found 2 different MD-12 motor drives. The first I will called it the drive in the normal position. and the second one the one where the top right is "pointing" towards the camera ( if fitted ) and not to the left as I always saw them advertised. Can you explain this ? I guess something is not right on the second one, and I consider it as a broken unit. Notice that the little rubber square is poiting outside.... please see pictures. Thanks and once again rellay great site. Lots of info. Thanks..." . - Rui Delgado -

The MD-12 is indeed a very reliable motor winding device, structurally it has a robust aluminum alloy metal and beneath its leather cover, it is treated with another layer of hard anoylised black paint. Hardly needs any maintenance and seldom casts any problem in operation. Well, this drive can fit into any of the cameras mentioned earlier, it is always in hot demand, selling it off after 10 years of heavy duty usage may not even hurt your pocket too much either. Lastly, if you are a owner of Nikon FM2n, there is a third party alternative slower Power Winder manufactured by Soligor for you to consider (NOT useable with FM and Nikon FM3a). Update: Another Alternate by N.I.C. Power Winder for your Nikon FM2, FE2 and Nikon FA
