Additional Information relating to CANON EOS630

MIR Logo.gif

File size: 23K HTML Loading....

DEDICATED FLASH UNITS

Users have a choice of three dedicated flash units for the EOS 630: Canon Speedlites 420EZ and 300EZ, and the Macro Ring Lite ML-3. All flash units feature a built-in AF auxiliary light that permits autofocusing in dark conditions. Features are listed below. However, the top sync speed of the EOS630 was strangely being "downgraded" to normal level as compared to earlier EOS620, where the EOS620 offers a higher sync speed at 1/250sec.

300flash.jpg 420flash.jpg
420EZ: Technical highlights:
A-TTL auto flash
*Built-in auto zoom
Second-curtain sync
Bounce flash
Rapid-fire capability (recycling time no less than 1.5 seconds)
Stroboscopic flash
Flash Photography:- Part 1 | 2 | 3 | 4 - Canon 540EZ site
Selective Canon TTL Flash Models:- 160E | 200E | 300EZ | 300TL | 420EZ | 430 EZ | 480EG | 540EZ | Macrolites | Other non-TTL Canon flash models
Others:
| Canon RS-60E3 Remote Switch | Canon RC-1 Remote Control | Canon RC-2 Remote Controller | Canon TC-80N3 Timer Remote Controller |

Canon Autofocus EF Lens Resources

300EZ: Technical highlights:
A-TTL auto flash
Built-in auto zoom
Second-curtain sync
Rapid-fire capability (recycling time no less than I second)
Macro Ring Lite ML-3: Technical highlights:
TTL auto flash
Revolving ring flash head
Dual flash tubes
Illumination changeover (tubes can be fired together or independently)
Focusing lamp
Modeling lamp

Available Optional Accessories for EOS-630

Quartz Date Back E
Technical Back E
Data imprint with the Technical Back E requires the use of color film at speeds of ISO 100 or higher for clear data registration. For monochrome film or film slower than ISO 100, contact the nearest Canon Service Facility for adjustment.
Interchangeable Grips
Interchangeable Focusing Screens
Circular Polarizing Filters PL-C

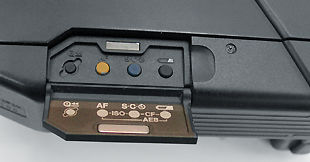

EOS630coverctrl.jpg EOS630frearview.jpg 630syschartsml.gif

DOWNLOAD a copy of the Canon EOS 630 System Chart 699k in PDF file

Credit: Images courtesy of Mr. Phoon of Phoon Foto, Ipoh ® where he also operates a popular website (URL:www.phoonfoto.com.my) trading new/used photo equipment. Image copyright © 2003. All rights reserved. Please respect the visual property of the contributing photographer.
